HFC Broadband Network Monitoring System DS1610 Return/Forward

Build Your Online Product Catalogs?

Product Name: HFC Broadband Network Monitoring System DS1610 Return/Forward
Supply Ability:
Specifications DS1610
Price Term: FOB
Port of loading: Tianjin
Minimum Order 1
Unit Price: 0
You may also be interested in: hfc, catv, frequency,

DS1610 monitoring system offers real-time signal monitoring and analyzing on multiple return and forward paths of HFC network simultaneously. The captured results could also be saved and managed for further operations. The operator is able to monitor the entire network on live through a PC located at the head end office or any remote locations.
DS1610 system is capable of capturing any transient noise and ingress noise which is less than 1ms.Other key features of DS1610 such as alarm setting, data storage, data analysis, data comparison in 3D and video record would simplify the installation, maintenance and troubleshooting of HFC network.

Key Features

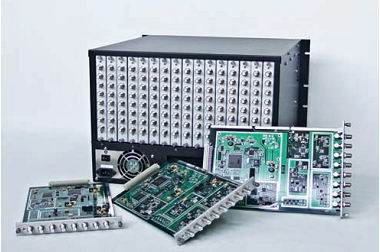

Module designed, with maximum 16 cards and 128 ports in 1 housing
Sweep time <= 1 ms
50 dB dynamic range
1 year history data record
24 hours real time sweep and monitor
Remote control
User management could set users with different authority levels

System Configuration
Standard Configuration
DS1610 Housing with built-in Local Management Software
DS1610 Server Software
DS1610 Client Management Software
Optional Module
DS1610-1D Return Path Monitor Car
DS1615 RF FSK Modulator
DS1610-3 Forward Path Monitor Card
1. Return Path Monitoring Solution
The return path signal transmits from cable modem finally to CMTS via splitter, reverse amplifier, fiber network and reverse receiver. DS1610 monitoring system with DS1610-1D card could monitor the real-time signal before it enters the CMTS and help capture the injected noises and troubleshoot the errors.
2. Return & Forward Path Deb***ing and Troubleshooting Solution
The combination of DS1610-1D with 1U rack RF FSK Modulation DS1615 and Handheld Analyzer DS2500R could fully meet the requirements of network installation, deb***ing and maintenance for both forward and return paths.
3. Forward Path Monitoring Solution
DS1610 monitoring system with DS1610-3 card could monitor the forward signal in real-time at different nodes within the networ
